Google Cloud HA VPN 구성하기

관련퀵랩

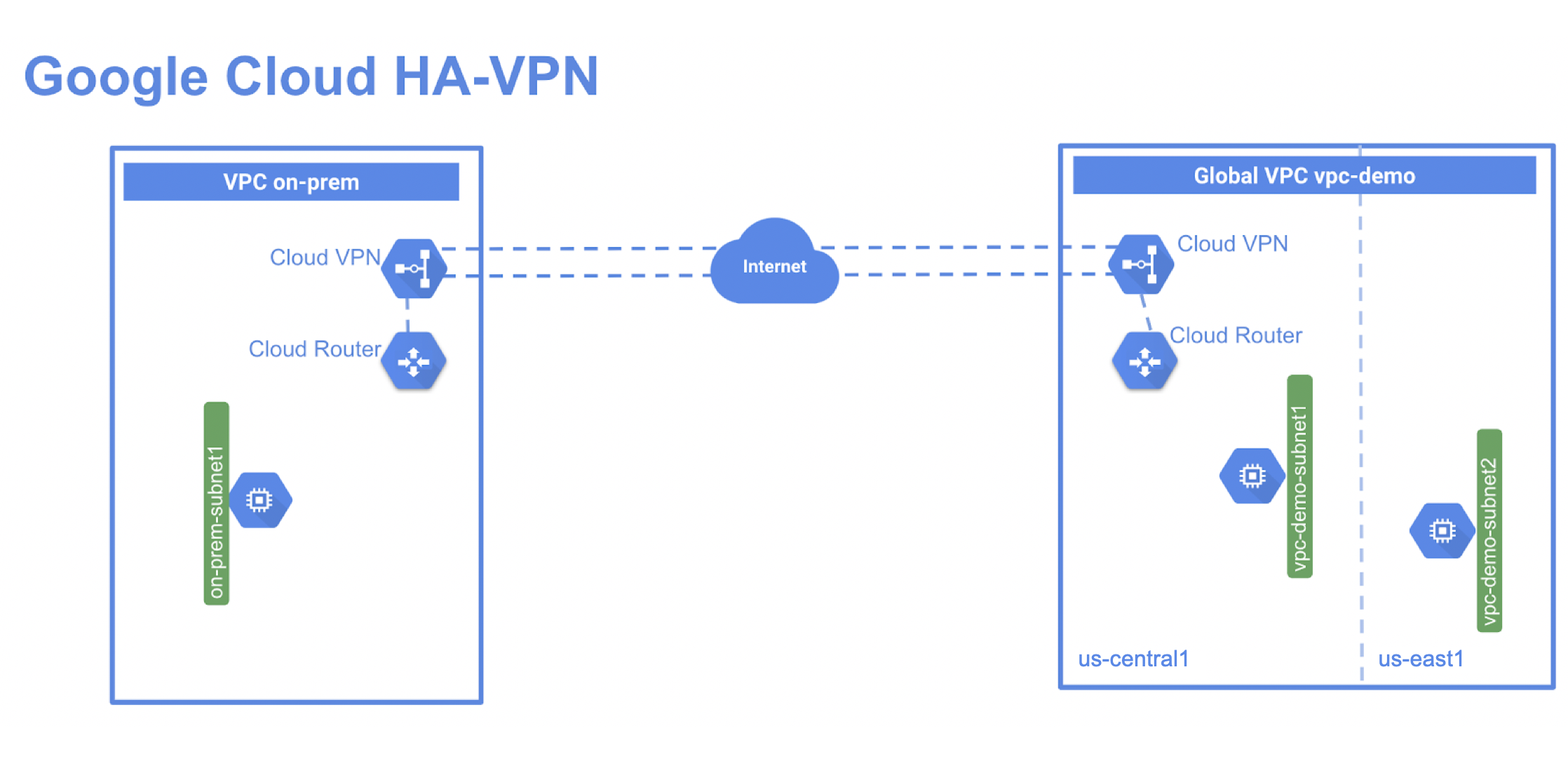

이걸 만들어야함. 만들어보자.

개요

• vpc 2개 생성
• 방화벽 규칙 생성
• vpn gw 생성
• bgp 피어링 생성
• vpn 터널 확인

목표

• 2개의 vpc 네트워크와 인스턴스 생성
• HA VPN 게이트웨이 구성
• VPN 터널로 동적 라우팅 구성
• 전역 동적 라우팅 모드 구성
• HA VPN gw 구성 확인 및 테스트

생각보다 어렵다. 잘 따라해보자.



---

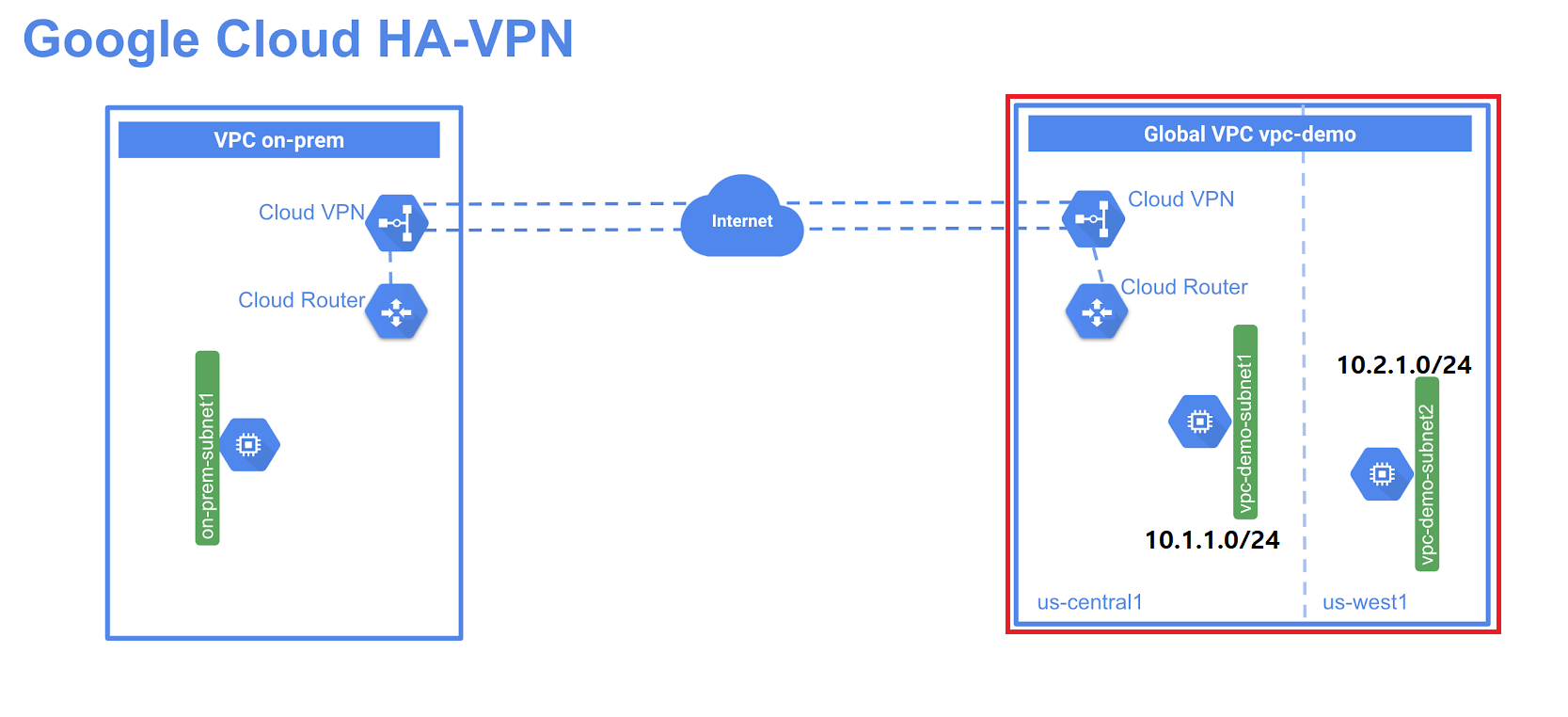

작업1. 전역 vpc 환경설정

오른쪽 vcp-demo 생성

[vpc 설정]
# demo vpc 생성

gcloud compute networks create [vpc명] --subnet-mode custom
gcloud compute networks create vpc-demo --subnet-mode custom

# demo vpc subnet 생성(us-central1)

gcloud compute networks subnets create [vpc-subnet명] --network [vpc명] --range [ip/24] --region [지역명]

gcloud compute networks subnets create vpc-demo-subnet1 \
--network vpc-demo --range 10.1.1.0/24 --region us-central1

# demo vpc subnet 생성(us-east1)

gcloud compute networks subnets create [vpc-subnet명] --network [vpc명] --range [ip/24] --region [지역명]

gcloud compute networks subnets create vpc-demo-subnet2 \
--network vpc-demo --range 10.2.1.0/24 --region us-east1

[방화벽 규칙 설정]
# demo-vpc 내 모든 트래픽 allow

gcloud compute firewall-rules create vpc-demo-allow-custom \
  --network vpc-demo \
  --allow tcp:0-65535,udp:0-65535,icmp \
  --source-ranges 10.0.0.0/8


# ssh, icmp 트래픽 허용 방화벽 규칙 생성

gcloud compute firewall-rules create vpc-demo-allow-ssh-icmp \
    --network vpc-demo \
    --allow tcp:22,icmp

[인스턴스 생성]
# region=us-central1-b

gcloud compute instances create vpc-demo-instance1 --zone us-central1-b --subnet vpc-demo-subnet1

# region=us-east1-b

gcloud compute instances create vpc-demo-instance2 --zone us-east1-b --subnet vpc-demo-subnet2



---

작업2. 시뮬레이션된 온프레미스 환경설정하기

[on-prem vpc 생성]

on-prem vpc 생성

# vpc 생성

gcloud compute networks create on-prem --subnet-mode custom

# subnet 생성

gcloud compute networks subnets create on-prem-subnet1 \
--network on-prem --range 192.168.1.0/24 --region us-central1

[방화벽 규칙 설정]

# on-prem vpc 내 모든 트래픽 allow

gcloud compute firewall-rules create on-prem-allow-custom \
  --network on-prem \
  --allow tcp:0-65535,udp:0-65535,icmp \
  --source-ranges 192.168.0.0/16

# ssh, rdp, http, icmp 트래픽 허용 방화벽 규칙 생성

gcloud compute firewall-rules create on-prem-allow-ssh-icmp \
    --network on-prem \
    --allow tcp:22,icmp



[인스턴스 생성]

gcloud compute instances create on-prem-instance1 --zone us-central1-a --subnet on-prem-subnet1

---

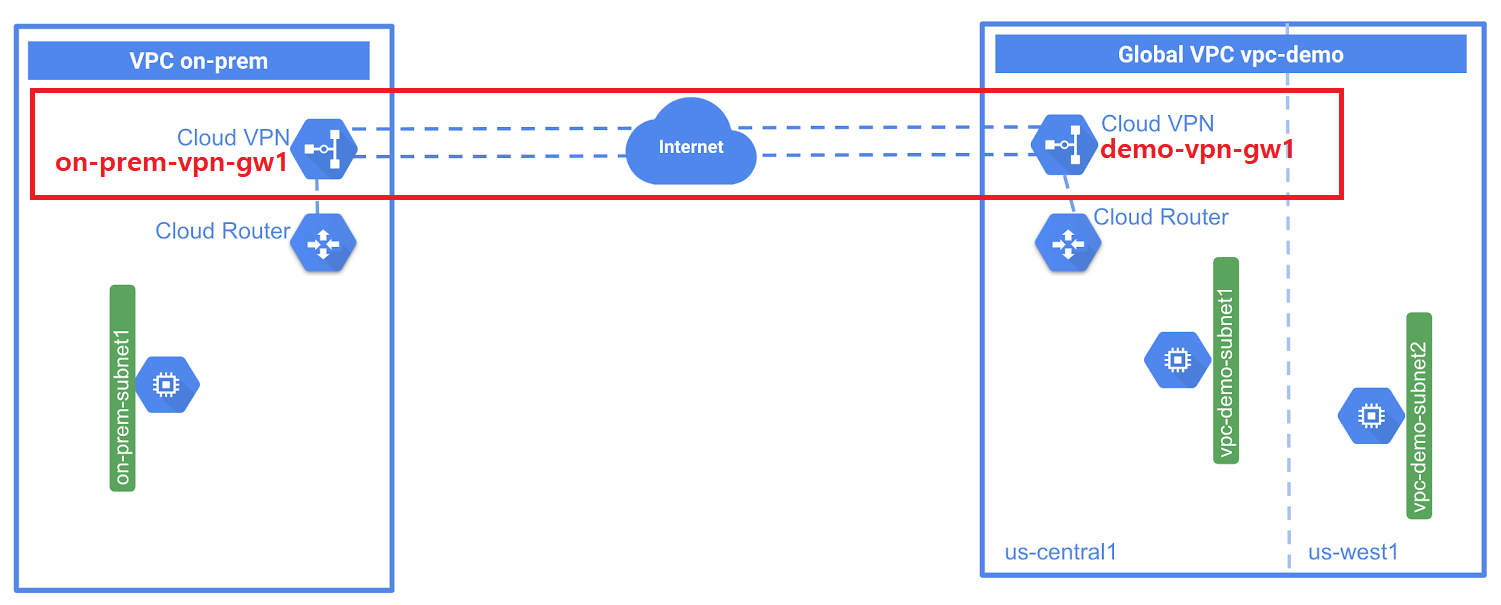

작업3. HA VPN 게이트웨이 설정

순서

(1) 게이트웨이 생성

(2) 라우터 생성

[gateway 생성]

# demo-vpc gw 생성

gcloud compute vpn-gateways create [vpc-게이트웨이명] --network [vpc명] --region [지역명]
gcloud compute vpn-gateways create vpc-demo-vpn-gw1 --network vpc-demo --region us-central1

# on-prem gw 생성

gcloud compute vpn-gateways create [vpc-게이트웨이명] --network [vpc명] --region [지역명]
gcloud compute vpn-gateways create on-prem-vpn-gw1 --network on-prem --region us-central1

# gw 세부정보 조회

gcloud compute vpn-gateways describe vpc-demo-vpn-gw1 --region us-central1
gcloud compute vpn-gateways describe on-prem-vpn-gw1 --region us-central1

[라우터 생성]

# demo-vpc router

gcloud compute routers create [gw와 연결할 라우터명] --region [지역명] --network [vpc명] --asn [asn번호]

gcloud compute routers create vpc-demo-router1 \
    --region us-central1 \
    --network vpc-demo \
    --asn 65001

# on-prem router

gcloud compute routers create [gw와 연결할 라우터명] --region [지역명] --network [vpc명] --asn [asn번호]

gcloud compute routers create on-prem-router1 \
    --region us-central1 \
    --network on-prem \
    --asn 65002

---

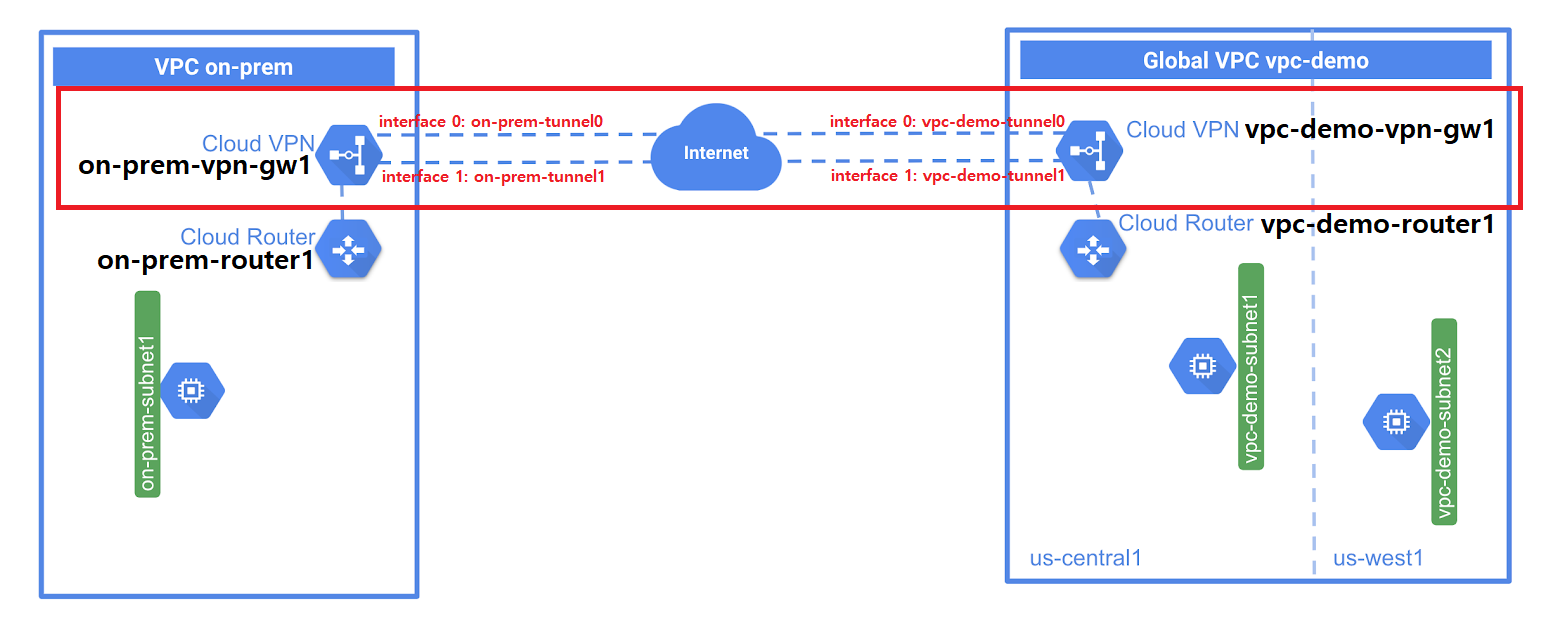

작업4. VPN 터널 2개 만들기

총 4개의 인터페이스 터널 생성 후 연결

[vpc-demo vpn tunnel]

# interface 0

gcloud compute vpn-tunnels create [vpn-터널명] \
    --peer-gcp-gateway [피어링할 반대편 게이트웨이명] \
    --region [지역명] \
    --ike-version 2 \
    --shared-secret [SHARED_SECRET] \
    --router [해당 라우터명] \
    --vpn-gateway [해당 게이트웨이명] \
    --interface 0

gcloud compute vpn-tunnels create vpc-demo-tunnel0 \
    --peer-gcp-gateway on-prem-vpn-gw1 \
    --region us-central1 \
    --ike-version 2 \
    --shared-secret [SHARED_SECRET] \
    --router vpc-demo-router1 \
    --vpn-gateway vpc-demo-vpn-gw1 \
    --interface 0

# interface 1

gcloud compute vpn-tunnels create [vpn-터널명] \
    --peer-gcp-gateway [피어링할 반대편 게이트웨이명] \
    --region [지역명] \
    --ike-version 2 \
    --shared-secret [SHARED_SECRET] \
    --router [해당 라우터명] \
    --vpn-gateway [해당 게이트웨이명] \
    --interface 1

gcloud compute vpn-tunnels create vpc-demo-tunnel1 \
    --peer-gcp-gateway on-prem-vpn-gw1 \
    --region us-central1 \
    --ike-version 2 \
    --shared-secret [SHARED_SECRET] \
    --router vpc-demo-router1 \
    --vpn-gateway vpc-demo-vpn-gw1 \
    --interface 1

[on-prem vpn tunnel]

# interface 0

gcloud compute vpn-tunnels create on-prem-tunnel0 \
    --peer-gcp-gateway vpc-demo-vpn-gw1 \
    --region us-central1 \
    --ike-version 2 \
    --shared-secret [SHARED_SECRET] \
    --router on-prem-router1 \
    --vpn-gateway on-prem-vpn-gw1 \
    --interface 0

# interface 1

gcloud compute vpn-tunnels create on-prem-tunnel1 \
    --peer-gcp-gateway vpc-demo-vpn-gw1 \
    --region us-central1 \
    --ike-version 2 \
    --shared-secret [SHARED_SECRET] \
    --router on-prem-router1 \
    --vpn-gateway on-prem-vpn-gw1 \
    --interface 1

---

작업5. 각 터널에 대한 경계 게이트웨이 프로토콜(BGP) 피어링 만들기

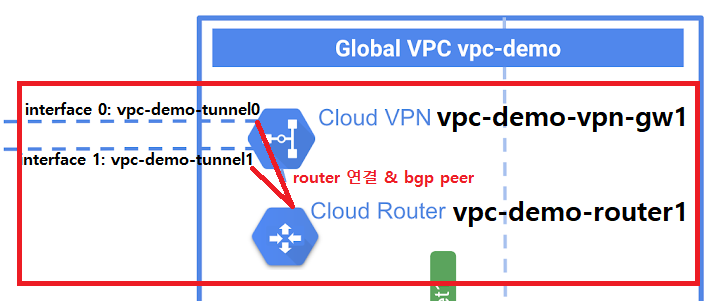

[vpc-demo tunnel 만들기]

router 연결 및 bgp peer(vpc-demo)

# interface0 에 대한 tunnel0 생성

gcloud compute routers add-interface [인터페이스를 추가할 해당 라우터명] \
    --interface-name [인터페이스명] \
    --ip-address [연결할 ip] \
    --mask-length 30 \
    --vpn-tunnel [vpn터널명] \
    --region [지역명]

gcloud compute routers add-interface vpc-demo-router1 \
    --interface-name if-tunnel0-to-on-prem \
    --ip-address 169.254.0.1 \
    --mask-length 30 \
    --vpn-tunnel vpc-demo-tunnel0 \
    --region us-central1

# tunnel0 bgp peer

gcloud compute routers add-bgp-peer [bgp-peer 할 라우터명] \
    --peer-name [피어링명] \
    --interface [인터페이스명] \
    --peer-ip-address [피어할 반대편 ip] \
    --peer-asn [피어할 반대편 asn번호] \
    --region [지역명]


gcloud compute routers add-bgp-peer vpc-demo-router1 \
    --peer-name bgp-on-prem-tunnel0 \
    --interface if-tunnel0-to-on-prem \
    --peer-ip-address 169.254.0.2 \
    --peer-asn 65002 \
    --region us-central1

# interface1 에 대한 tunnel1 생성

gcloud compute routers add-interface [인터페이스를 추가할 해당 라우터명] \
    --interface-name [인터페이스명] \
    --ip-address [연결할 ip] \
    --mask-length 30 \
    --vpn-tunnel [vpn터널명] \
    --region [지역명]


gcloud compute routers add-interface vpc-demo-router1 \
    --interface-name if-tunnel1-to-on-prem \
    --ip-address 169.254.1.1 \
    --mask-length 30 \
    --vpn-tunnel vpc-demo-tunnel1 \
    --region us-central1

# tunnel1 bgp peer

gcloud compute routers add-bgp-peer [bgp-peer 할 라우터명] \
    --peer-name [피어링명] \
    --interface [인터페이스명] \
    --peer-ip-address [피어할 반대편 ip] \
    --peer-asn [피어할 반대편 asn번호] \
    --region [지역명]


gcloud compute routers add-bgp-peer vpc-demo-router1 \
    --peer-name bgp-on-prem-tunnel1 \
    --interface if-tunnel1-to-on-prem \
    --peer-ip-address 169.254.1.2 \
    --peer-asn 65002 \
    --region us-central1

[on-prem tunnel 생성]

router 연결 및 bgp peer(on-prem)

# interface0 에 대한 tunnel0 생성

gcloud compute routers add-interface [인터페이스를 추가할 해당 라우터명] \
    --interface-name [인터페이스명] \
    --ip-address [연결할 ip] \
    --mask-length 30 \
    --vpn-tunnel [vpn터널명] \
    --region [지역명]


gcloud compute routers add-interface on-prem-router1 \
    --interface-name if-tunnel0-to-vpc-demo \
    --ip-address 169.254.0.2 \
    --mask-length 30 \
    --vpn-tunnel on-prem-tunnel0 \
    --region us-central1

# tunnel0 bgp peer

gcloud compute routers add-bgp-peer [bgp-peer 할 라우터명] \
    --peer-name [피어링명] \
    --interface [인터페이스명] \
    --peer-ip-address [피어할 반대편 ip] \
    --peer-asn [피어할 반대편 asn번호] \
    --region [지역명]


gcloud compute routers add-bgp-peer on-prem-router1 \
    --peer-name bgp-vpc-demo-tunnel0 \
    --interface if-tunnel0-to-vpc-demo \
    --peer-ip-address 169.254.0.1 \
    --peer-asn 65001 \
    --region us-central1

# interface1 에 대한 tunnel1 생성

gcloud compute routers add-interface [인터페이스를 추가할 해당 라우터명] \
    --interface-name [인터페이스명] \
    --ip-address [연결할 ip] \
    --mask-length 30 \
    --vpn-tunnel [vpn터널명] \
    --region [지역명]


gcloud compute routers add-interface  on-prem-router1 \
    --interface-name if-tunnel1-to-vpc-demo \
    --ip-address 169.254.1.2 \
    --mask-length 30 \
    --vpn-tunnel on-prem-tunnel1 \
    --region us-central1

# tunnel1 bgp peer

gcloud compute routers add-bgp-peer [bgp-peer 할 라우터명] \
    --peer-name [피어링명] \
    --interface [인터페이스명] \
    --peer-ip-address [피어할 반대편 ip] \
    --peer-asn [피어할 반대편 asn번호] \
    --region [지역명]


gcloud compute routers add-bgp-peer  on-prem-router1 \
    --peer-name bgp-vpc-demo-tunnel1 \
    --interface if-tunnel1-to-vpc-demo \
    --peer-ip-address 169.254.1.1 \
    --peer-asn 65001 \
    --region us-central1

---

작업6. 라우터 구성 확인하기

# 라우터 구성 세부정보 확인

gcloud compute routers describe vpc-demo-router1 --region us-central1
gcloud compute routers describe on-prem-router1 --region us-central1

[원격 vpc의 트래픽을 허용하도록 방화벽 규칙 구성]

# on-prem 네트워크에서 vpc-demo 트래픽 허용

gcloud compute firewall-rules create vpc-demo-allow-subnets-from-on-prem \
    --network vpc-demo \
    --allow tcp,udp,icmp \
    --source-ranges 192.168.1.0/24

# vpc-demo 네트워크에서 on-prem 트래픽 허용

gcloud compute firewall-rules create on-prem-allow-subnets-from-vpc-demo \
    --network on-prem \
    --allow tcp,udp,icmp \
    --source-ranges 10.1.1.0/24,10.2.1.0/24

---

작업7. HA VPN 터널 구성확인 및 테스트

# 터널 리스트 확인

gcloud beta compute vpn-tunnels list

[터널 작동 테스트]

* Tunnel is up and running. 이 표시되어야 한다.

# vpc-demo-tunnel0
gcloud beta compute vpn-tunnels describe vpc-demo-tunnel0 --region us-central1

# vpc-demo-tunnel1
gcloud beta compute vpn-tunnels describe vpc-demo-tunnel1 --region us-central1

# on-prem-tunnel0
gcloud beta compute vpn-tunnels describe on-prem-tunnel0 --region us-central1

# on-prem-tunnel1
gcloud beta compute vpn-tunnels describe on-prem-tunnel1 --region us-central1

[vpn을 통한 비공개 연결 확인]

# on-prem 인스턴스 ssh 접속

gcloud compute ssh on-prem-instance1 --zone us-central1-a
y
enter*2

# ping test

ping -c 3 10.1.1.2

[vpn을 사용한 글로벌 라우팅(new tab)]

# 라우팅 설정

gcloud compute networks update vpc-demo --bgp-routing-mode GLOBAL

# 변경사항 확인

gcloud compute networks describe vpc-demo

# 다시 ssh탭에서 ping

ping -c 3 10.2.1.2

[터널 고가용성(HA) 확인]

HA 확인

# vpc-demo tunnel0 네트워크 다운시키기

gcloud compute vpn-tunnels delete vpc-demo-tunnel0  --region us-central1
y

# 터널 다운되었는지 확인

gcloud compute vpn-tunnels describe on-prem-tunnel0  --region us-central1

# ssh instance에서 ping 확인

** ping test가 성공해야한다.

ping 10.1.1.2

---

작업8. 실습환경 삭제

# vpn 터널삭제

gcloud compute vpn-tunnels delete on-prem-tunnel0  --region us-central1
gcloud compute vpn-tunnels delete vpc-demo-tunnel1  --region us-central1
gcloud compute vpn-tunnels delete on-prem-tunnel1  --region us-central1

# BGP 피어링 제거

gcloud compute routers remove-bgp-peer vpc-demo-router1 --peer-name bgp-on-prem-tunnel0 --region us-central1
gcloud compute routers remove-bgp-peer vpc-demo-router1 --peer-name bgp-on-prem-tunnel1 --region us-central1
gcloud compute routers remove-bgp-peer on-prem-router1 --peer-name bgp-vpc-demo-tunnel0 --region us-central1
gcloud compute routers remove-bgp-peer on-prem-router1 --peer-name bgp-vpc-demo-tunnel1 --region us-central1

# 클라우드 라우터 삭제

gcloud compute  routers delete on-prem-router1 --region us-central1
gcloud compute  routers delete vpc-demo-router1 --region us-central1

# vpc 게이트웨이 삭제

gcloud beta compute vpn-gateways delete vpc-demo-vpn-gw1 --region us-central1
gcloud beta compute vpn-gateways delete on-prem-vpn-gw1 --region us-central1

# 인스턴스 삭제

gcloud compute instances delete vpc-demo-instance1 --zone us-central1-b
gcloud compute instances delete vpc-demo-instance2 --zone us-east1-b
gcloud compute instances delete on-prem-instance1 --zone us-central1-a

# 방화벽 규칙 삭제

gcloud beta compute firewall-rules delete vpc-demo-allow-internal
gcloud beta compute firewall-rules delete on-prem-allow-subnets-from-vpc-demo
gcloud beta compute firewall-rules delete on-prem-allow-ssh-icmp
gcloud beta compute firewall-rules delete on-prem-allow-internal
gcloud beta compute firewall-rules delete vpc-demo-allow-subnets-from-on-prem
gcloud beta compute firewall-rules delete vpc-demo-allow-ssh-icmp

# 서브넷 삭제

gcloud beta compute networks subnets delete vpc-demo-subnet1 --region us-central1
gcloud beta compute networks subnets delete vpc-demo-subnet2 --region us-east1
gcloud beta compute networks subnets delete on-prem-subnet1 --region us-central1

# vpc 삭제

gcloud compute networks delete vpc-demo
gcloud compute networks delete on-prem
